Primary Framing Members

CEPro built-up members (H-Beams) are manufactured by gas cutting of HR steel plates in required sizes, standards confirming to ASTM A572 Grade 345 Mpa. These plates of various sizes are welded together on one side by continuous welding and other side by stitch welding at regular intervals to make an H-beam.

These are custom-built sections, so virtually any size of section can be made as per design requirement. Splice plates are welded at the end of different H - beam sections. These H-beam sections are assembled together by bolting the splice plates to make a complete frame assembly. The Primary members are available in high grade steel of minimum yield strength of 345 Mpa.

Our Pre-Engineered Steel Buildings are 100% custom designed to provide maximum space utilisation, excellent strength and highest safety standards. Our basic architectural measures include:

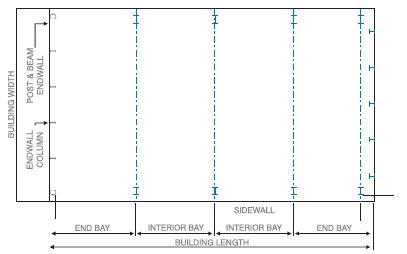

• Building Width:The distance from the outside of the eave strut of one sidewall to the outside of the eave strut of the facing wall.
• Building Length:The distance between the outside flanges of endwall columns in the facing endwall.
• End Bay Length:The distance from the outside of the outer flange of end wall columns to the centre line of the first interior frame columns.
• Interior Bay Length:The distance between the centre lines of two adjacent interior main frame columns, which usually range from 6m, 7.5m and 9m to 15m.

The Building Height is the eave height, which is the length from the foot of the main frame column base plate to the top outer point of the eave strut and can measure up to a height of 30m. In the case of columns that are recessed or elevated from the finished floor, the eave height is the distance from the finished floor to the top of the eave strut. The Roof Slope is the angle that the roof forms with respect to the horizontal and is commonly 1/10.

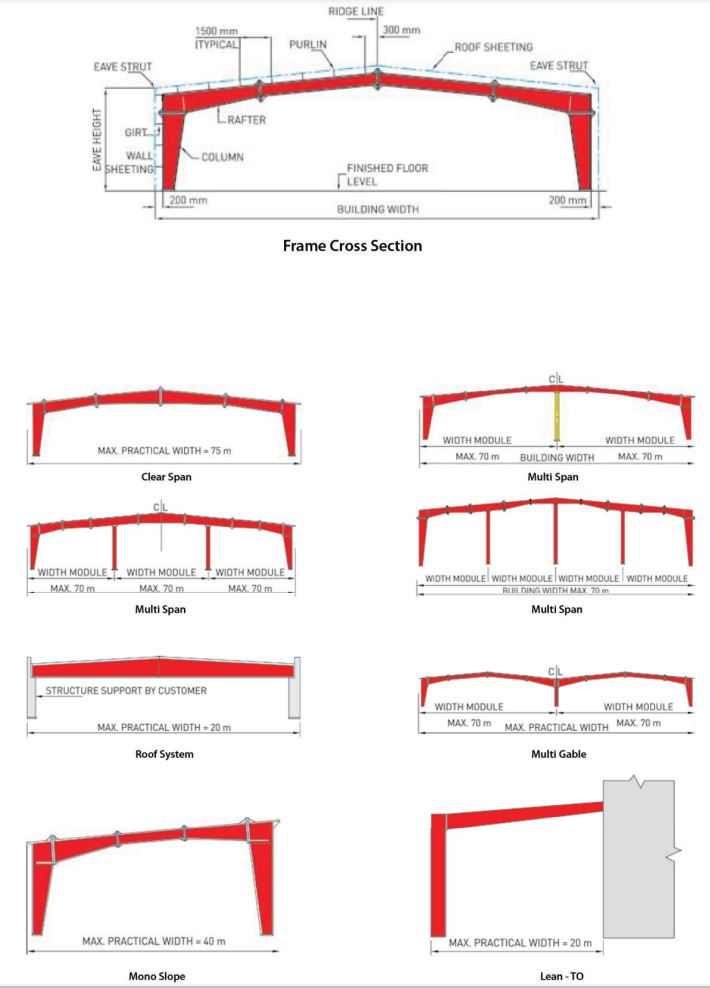

Frame Types

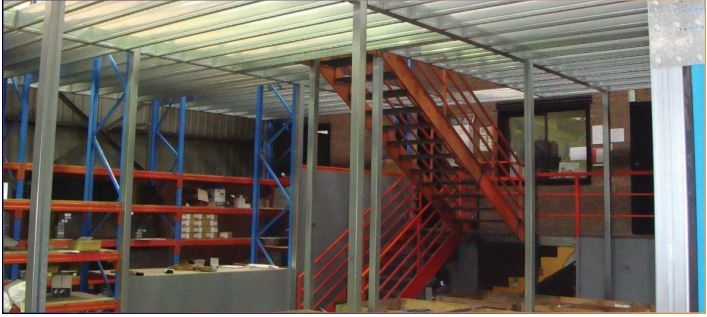

Buildings With Mezzanines

CEPro Standard Mezzanine system is a combination of profiled GI steel deck, built-up primary beams, mezzanine joists and intermediate support columns. Built-up beams span in lateral directions and mezzanine joists in longitudinal directions bolted to the top flange of beams. A concrete slab is cast on the steel deck as a finished surface. Shear buttons are provided on the deck panel for proper bonding of concrete with deck panel. Steel checkered plates can also be used as top surface.

Mezzanine systems are used in Industrial buildings for additional storage space and office space requirement in building itself .

Mezzanine is a cost-effective and time efficient way to create additional storage space in any new or existing building. Mezzanines create additional floor space by going up not out. saving you the considerable cost of new construction .The prefabricated design also saves time since all component s arrive prefabricated and ready for immediate installation.

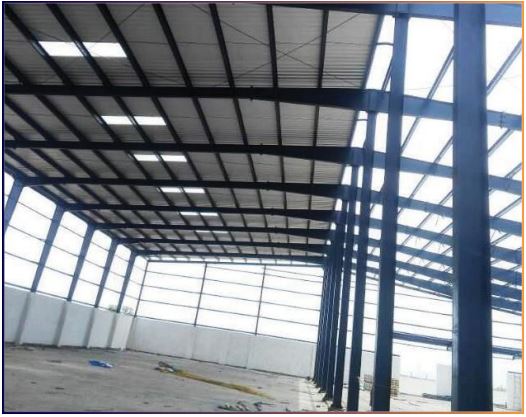

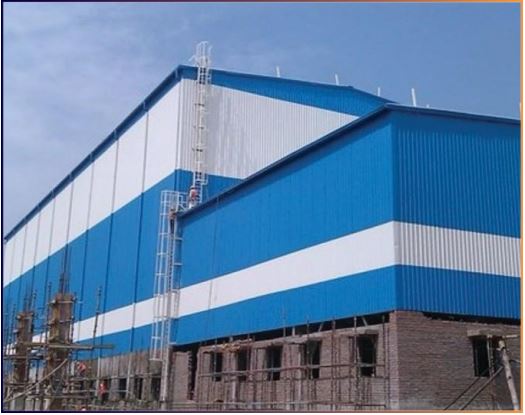

Complete Solution

CEPro Building Systems Pvt Ltd does far more than supply and erection of Pre Engineered metal buildings. We offers complete solutions to the customer enabling them to focus on their organization strategic goals. we undertake a single source responsibility for the project through co-ordination of all the departments viz.

• Design & Engineering
• Manufacturing
• Project management
• Logistics
• Erection

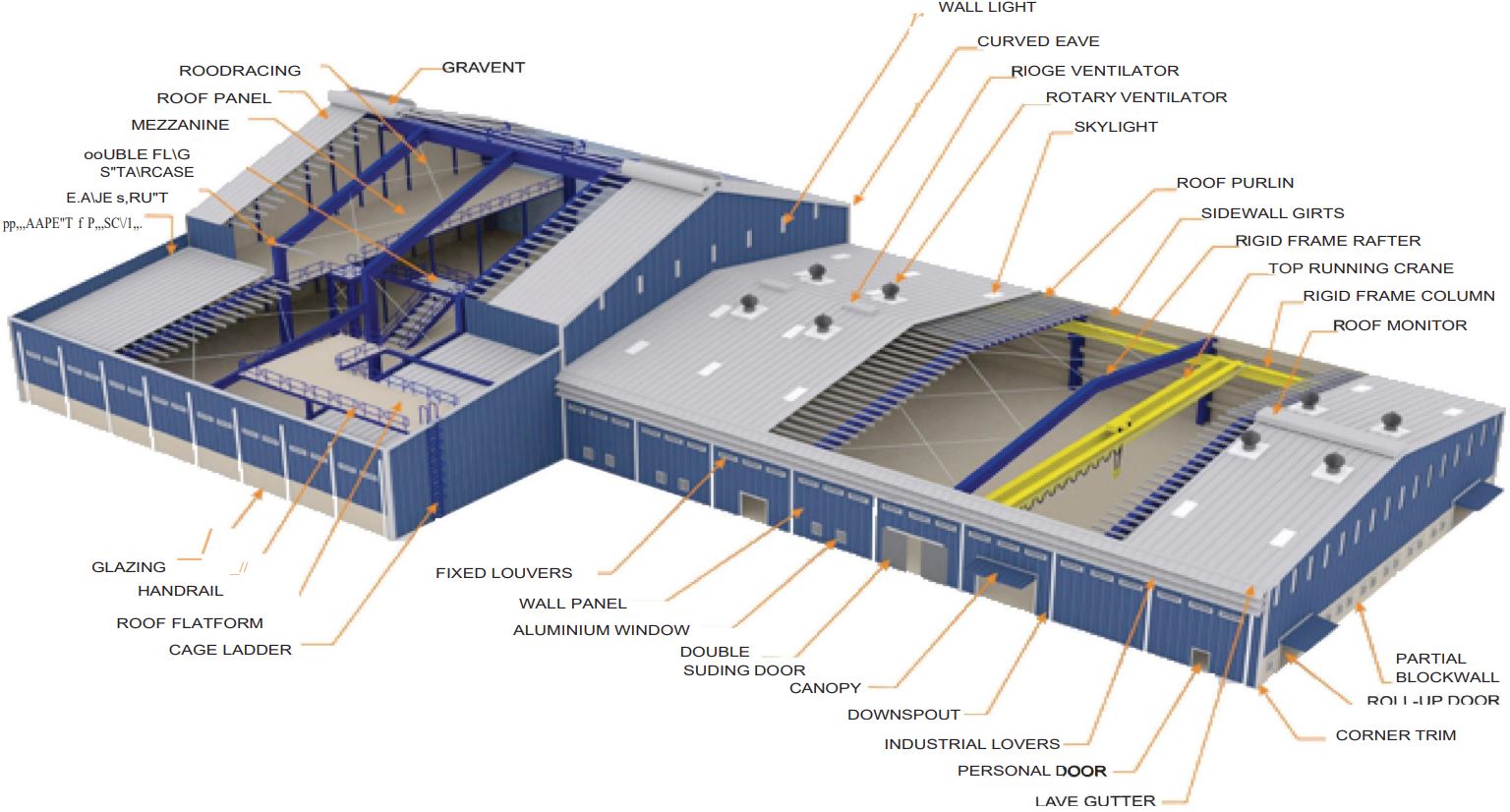

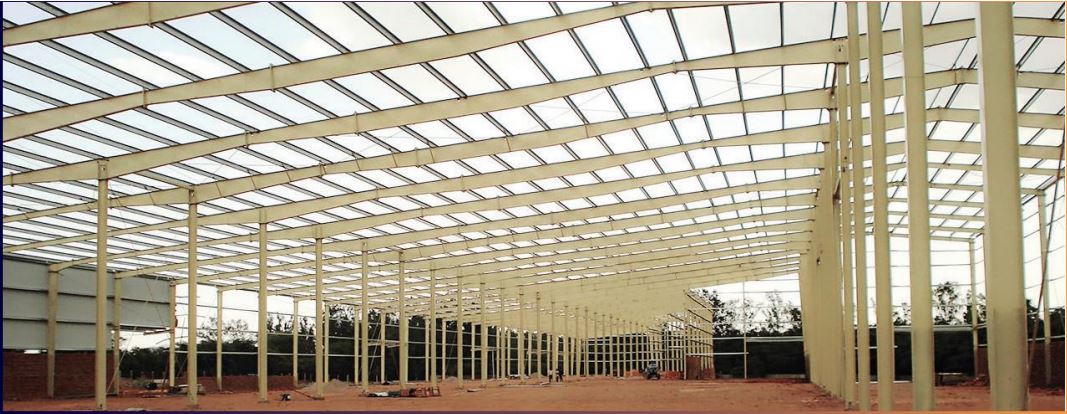

Pre-Engineered Building is a combination of built-up primary members,secondary members and roofing and wall cladding either single skin or insulated panels. Built-up members and secondary members form a well braced steel skeleton structure which is enveloped by roofing and wall cladding. Thus, we get an air tight, weather proof, energy efficient building to serve the need of customer.

Pre-Engineered Buildings are designed with the help of International Standards. These are precisely manufactured as per customer's requirement and also can be fitted with different structural accessories including mezzanines, Canopies, Fascia, Partitions, crane beams etc. To enhance the building usage and its aesthetics.
